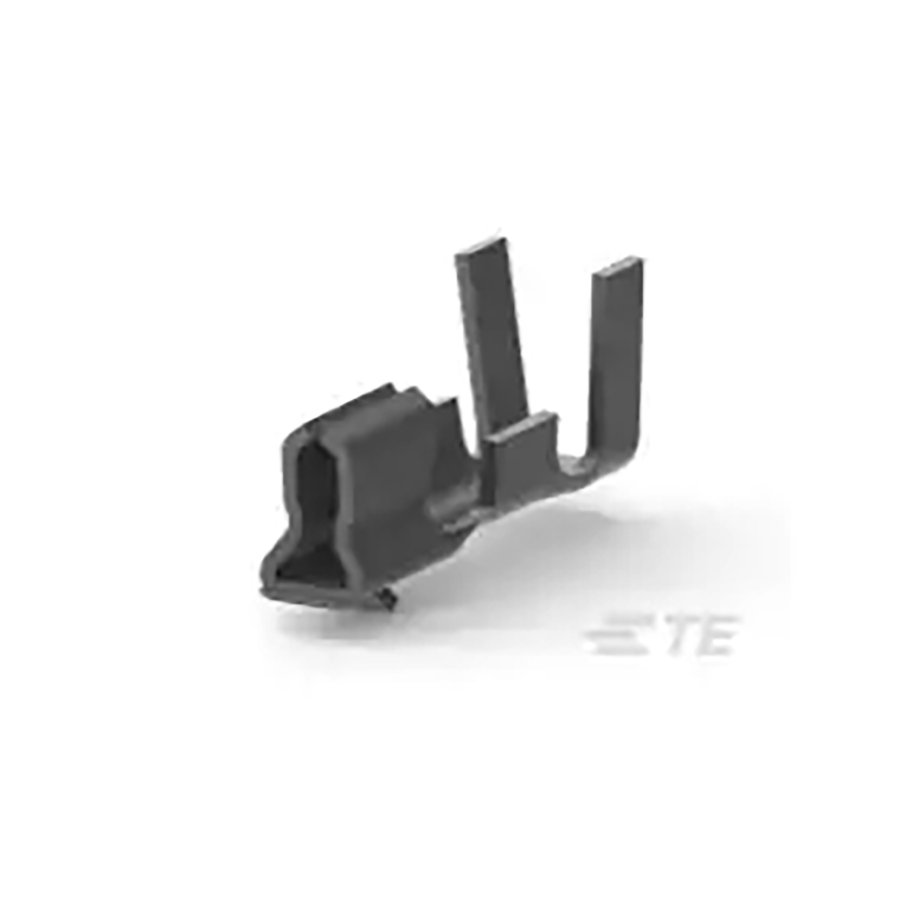

1735801-1
Manufacturer:
TE Connectivity
Mfr.Part #:
1735801-1
Datasheet:
Description:
Headers and Wire Housings Cable Socket Pitch:2 mm
| Parameter | Value |
|---|---|
| Length | 5.8 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -25 °C |
| Height | 2.8 mm |
| Packaging | Reel |
| Voltage Rating | 250 V |
| Depth | 2.1 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Phosphor Bronze |
| Pitch | 2 mm |
| Current Rating | 3 A |
| Orientation | Straight |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Socket (Female) |
| Shielding | Unshielded |
| Connector Type | Socket |
| Wire/Cable Gauge | 30 AWG to 24 AWG |
| Wire/Cable Type | Discrete |
| Circuit Application | Signal |
| Connector System | Wire-to-Board |
| Contact Style | Socket |
| Contact Current Rating | 3 A |
| Wire Gauge (Max) | 30 AWG |
| Wire Gauge (Min) | 24 AWG |
| Plating | Tin |
| Contact Gender | Female |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Termination Style | Crimp |
Stock: 6180
Distributors
pcbx
pcbxUnit Price$0.04200
Ext.Price$0.04200
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.04200 | $0.04200 |
| 10 | $0.02100 | $0.21000 |
| 50 | $0.01615 | $0.80750 |
| 100 | $0.01242 | $1.24200 |
| 500 | $0.01098 | $5.49000 |
| 1000 | $0.00970 | $9.70000 |
| 3000 | $0.00823 | $24.69000 |
| 5000 | $0.00778 | $38.90000 |
| 10000 | $0.00735 | $73.50000 |
| 30000 | $0.00698 | $209.40000 |
| 50000 | $0.00663 | $331.50000 |
| 100000 | $0.00614 | $614.00000 |
